Boat Door Sensor

This sensor is exclusively compatible with boats that are already equipped with Seanapps. To equip your boat, discover the Seanapps Retrofit Pack

PRICE : €79*

Ref : 225212

The Seanapps Magnetic Door Sensor is an essential product for enhancing security on your boat. Designed to accurately monitor the opening and closing of doors and windows using a magnet-based system, this sensor plays a crucial role in managing access to important compartments or secure areas of your yacht.

Pay later: Pre-order online and pay with your installer upon delivery.

Delivery: directly to your authorized installer – Delivery fees not included.

*VAT rate not included + excluding delivery and installation costs.

The Seanapps Magnetic Door Sensor is an essential product for enhancing security on your boat. Designed to accurately monitor the opening and closing of doors and windows using a magnet-based system, this sensor plays a crucial role in managing access to important compartments or secure areas of your yacht.

This innovative sensor operates by detecting the separation of the magnet, thereby signaling any opening or closing within a 4-second interval. Its sensitivity is such that it can detect a maximum gap of 5 mm between the detector and the magnet, ensuring reliable and precise detection.

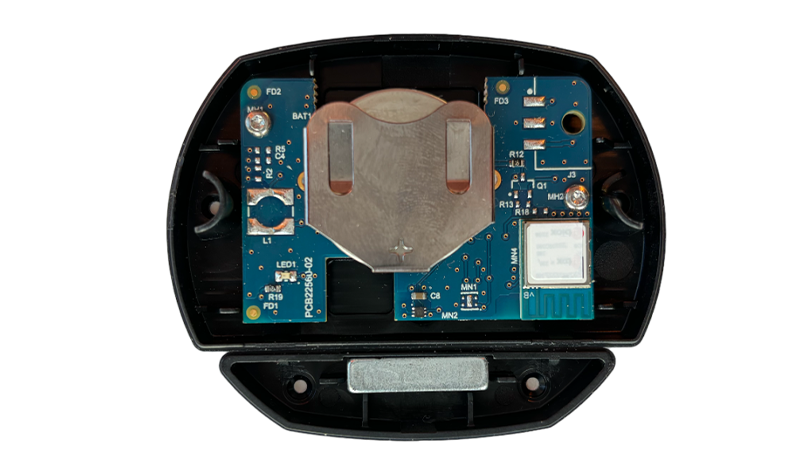

Powered by a CR2450 3V battery, the sensor offers a lifespan of about two years, thus reducing the need for frequent replacements. A LED indicator flashes upon power on and every 60 seconds if the battery voltage is below 2.5V, allowing you to easily monitor the battery’s condition.

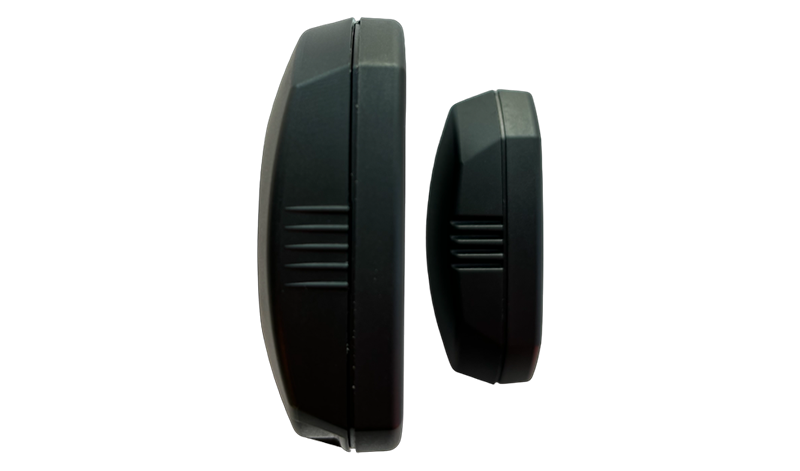

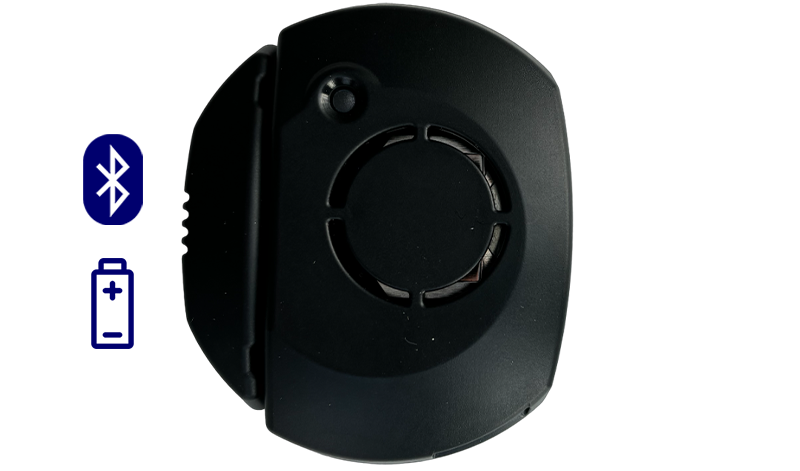

Available in black or white, the sensor measures 70x60x21mm (detector plus magnet) and is made of sturdy ABS plastic. It can be installed either by adhesive or using four screws (two for the magnet and two for the sensor). Thanks to its Bluetooth Low Energy 5.1 technology, it enjoys a range of 15 to 20 meters in open space, making it easy to integrate with the Seanapps application via a simple QR code scan.

For optimal installation, the sensor and magnet should be placed indoors, on the same plane, and at a maximum distance of 5 mm for effective detection. Also, ensure they are accessible for battery changes. This sensor is a wise choice for those seeking a simple and effective solution to improve security on board.

  • Data: Opening / Closing of the joinery (detection of magnet moving away)
  • Data recurrence: 4 seconds
  • Sensitivity: Max gap of 5mm between the detector and the magnet
  • Battery type: CR2450 3V
  • Battery life: About 2 years
  • Battery data: 90% >2.4V / 50% >2.3V / 20%>2.1V /Alarm<=2.1V
  • Connector type: None
  • LED: Flash at power ON / Flash every 60s if battery <2.5V
  • Protection against polarity reversal
  • Product dimensions: 70x60x21mm (detector + magnet)
  • Color: Black or White
  • Material: plastic (ABS)
  • Fixation: bonding or x4 screws diameter 3mm (2 for the magnet and 2 for the sensor)
  • Protocol: Bluetooth Low Energy 5.1
  • Range: 15 to 20m in open field
  • Protection: tropicalized electronic board/No protection against water splashes
  • Seanapps pairing: QR CODE

It must be placed indoor. The detector and the magnet must be on the same plane and at a maximum distance of 5mm for the detection of the closing of the frame. It must be installed to be accessible to change the battery.

24-month commercial warranty
In case of a breakdown, the product is repaired free of charge by your dealer. If repair is not possible, the product is exchanged.

Dedicated customer service
Contact your certified Seanapps dealer for any questions regarding installation, configuration, or problem reporting.
